Helical-Worm gearmotors SEW S Series

Helical-worm Gearmotor S Series

Due to their design and from being combined with a helical gear stage, the helical-worm gearmotors S..DR.. have particularly high efficiency. They are also extremely low-noise and thus avoid high noise emission levels.

Low-noise continuous operation: gear unit combination optimized with respect to efficiency

Do you expect a drive solution to impress you with its high level of performance and efficiency? In that case, we would recommend our high-quality helical-worm gearmotors S..DR.. to you. These can be implemented individually in the modular system. In this way, they offer you an enormous range of sizes, gear ratios and motor sizes.

However, their greatest strength is their running smoothness and their extremely low noise development. One thing is certain – With the helical-worm gearmotors S..DR.. you are choosing a powerful drive solution which you will hardly even hear.

The overall concept also offers you many more practical product characteristics and benefits. These include the significantly higher efficiency of the helical-worm combinations as opposed to single helical-worm gear units. This is how you save additional energy in the operation of your systems and are able to noticeably reduce ongoing operating costs.

You will receive the low-noise helical-worm gearmotors S..DR.. - to suit your individual requirements - with a wide range of AC motors. In addition, you can freely configure all of the relevant properties. In this way, you can effectively make use of all the benefits offered by this combination of low-noise helical-worm gear unit and performance-optimized motor. Even greater variance can be achieved thanks to the optional flange or foot-mounted design and by choosing between solid and hollow shaft.



Your benefits

Reduce noise

as the helical-worm gearmotor minimizes noise pollution in the area surrounding your system thanks to its running smoothness.

Increase efficiency

because the gearmotor offers a high degree of efficiency thanks to its combination with a helical gear stage in the gear unit.

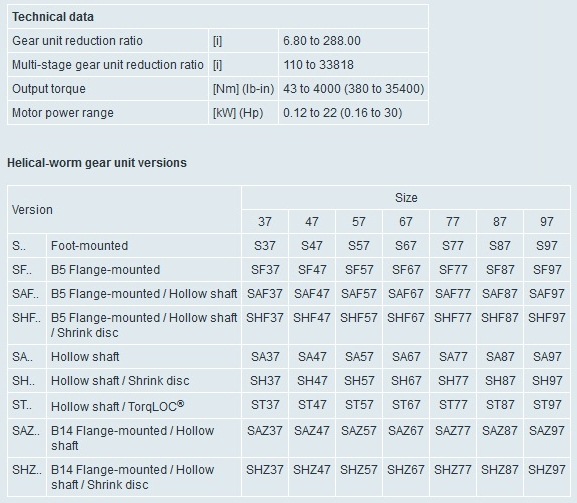

Available versions :

Foot-mounted or flange-mounted

B5 or B14 Flange-mounted

Solid or hollow shaft

Hollow shaft with keyed connection, shrink disc, splined hollow shaft or TorqLOC







Areas of application

Drives in theater applications
Adjustment drives
Presses
Rotary tables
Corner transfer units





Catalogue of Helical-Worm gearmotors SEW - S Series

Operational Instruction of Helical-Worm gearmotors SEW - S Series





* For more information and buy "SEW" products , kindly contact sales department.
