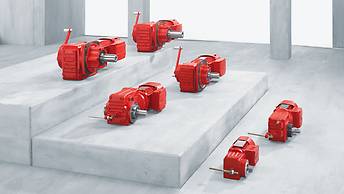

Gearmotor for electrified monorail system

Electrified monorail system drives for light loads

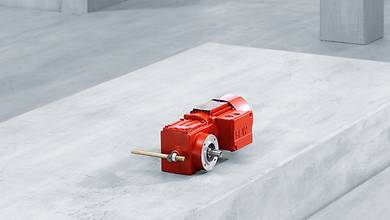

Electrified monorail system drives of the HW series for light loads

The HW series offers you electrified monorail drives for light-load applications. These angular drives are quiet in operation, low-noise and space-saving in their installation. Two sizes ensure reliable wheel loads of 2500 N to 5600 N.

Quiet and space-saving design: EMS drives of the HW series for light loads

Are electrified monorail systems also an essential means of transport in your production lines? Finding the optimum drive at SEW-EURODRIVE isn't hard. This is because our drives are of course oriented to your transported goods and your application. In this way, our EMS drives ensure optimum performance, conveyor speed and lift capacity - all according to your needs.

The electrified monorail drives of the HW series are designed for applications in light load range. They comply with the specifications of the C1 Directive (VDI RI-3643) and are very quiet.

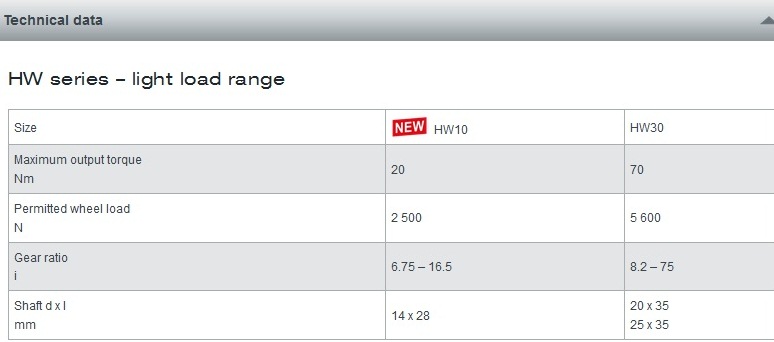

The particularly compact HW10 in right-angle design for light loads is the latest, extremely compact size for light loads and delivers a maximum torque of 20 Nm and a permissible wheel load of up to 2500 N.

A maximum torque of 70 Nm and a permissible wheel load of up to 5600 N can be achieved with size HW30.





Your benefits

Greater productivity

can be achieved with this low-maintenance electrified monorail drive as as it enables a high degree of system availability.

Special running smoothness

is achieved thanks to our EMS gearmotors due to their vibration-free operation.

Quiet drives

are important particularly at manual work stations - so use the low-noise drives of this series.

Space-saving installation

is made possible by the compact design of our electrified monorail drives of the HW series.





Electrified monorail system drives of the HW series for light loads

Areas of applications

Optimized for use in electrified monorail system for light loads and in compliance with VDI Directive 3643 (C1 standard)
Floor conveyors
Switch setting drives

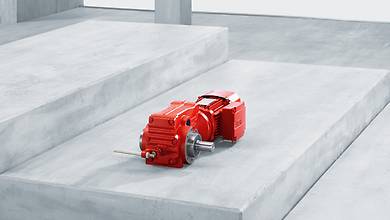

Electrified monorail system drives for heavy loads - HK Series

The HK series is our no. 1 for heavy load applications. This EMS drive has a high level of efficiency thanks to the helical-bevel gear unit. You can choose from four sizes for wheel loads ranging from 14 500 N to 40 000 N.

Heavy duty and reliable: EMS drives for the heavy load range

Electrified monorail systems are an important tried and tested means of transport for operationally reliable transportation of heavy loads - surely in your systems as well.

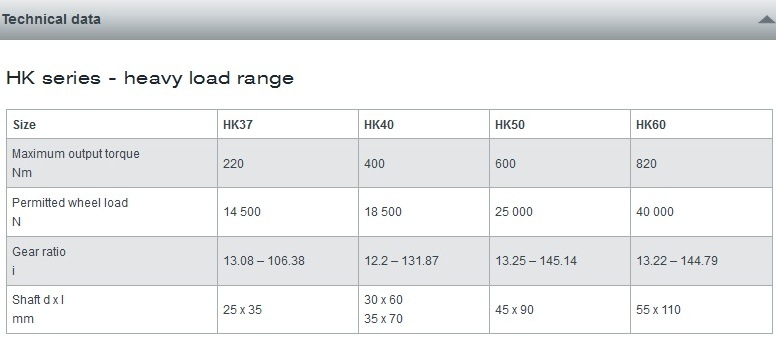

Our range of electrified monorail system drives for heavy loads has a total of four sizes so that we are able to provide you with optimum support in this regard. Wheel loads of 14 500 N to 40 000 N are implemented.

In this way, we ensure optimal matching of power, conveyor speed and lift capacity of our drives to your transported goods and your application.

The latest size, the HK37 bevel gear type, completes the lower power range with a permissible wheel load of up to 14 500 N at a maximum torque of up to 220 Nm.





Your benefits

High wheel loads

of up to 40 000 N are possible thanks to the helical-bevel gear unit with a high degree of efficiency.

Low maintenance requirements

can be achieved by combining the EMS drives with the contactless energy transfer system MOVITRANS®.

High operational reliability

in heavy load systems is guaranteed by this series thanks to the coupling in the gear unit output stage.





Areas of application

Electrified monorail system in heavy load range
Floor conveyors
Automated guided vehicle systems (AGV)
Switch setting drives





Catalogue of Gearmotor for electrified monorail system
